200W Low Voltage Landscape Transformer 6 Modes
4 sold in last 24 hours
- Full 200W Rated Power: Converts household 120V AC power to 12V AC low-voltage output and supports the full 200W rated lighting load, providing dependable power for compatible outdoor path lights, spotlights, floodlights, and garden lights

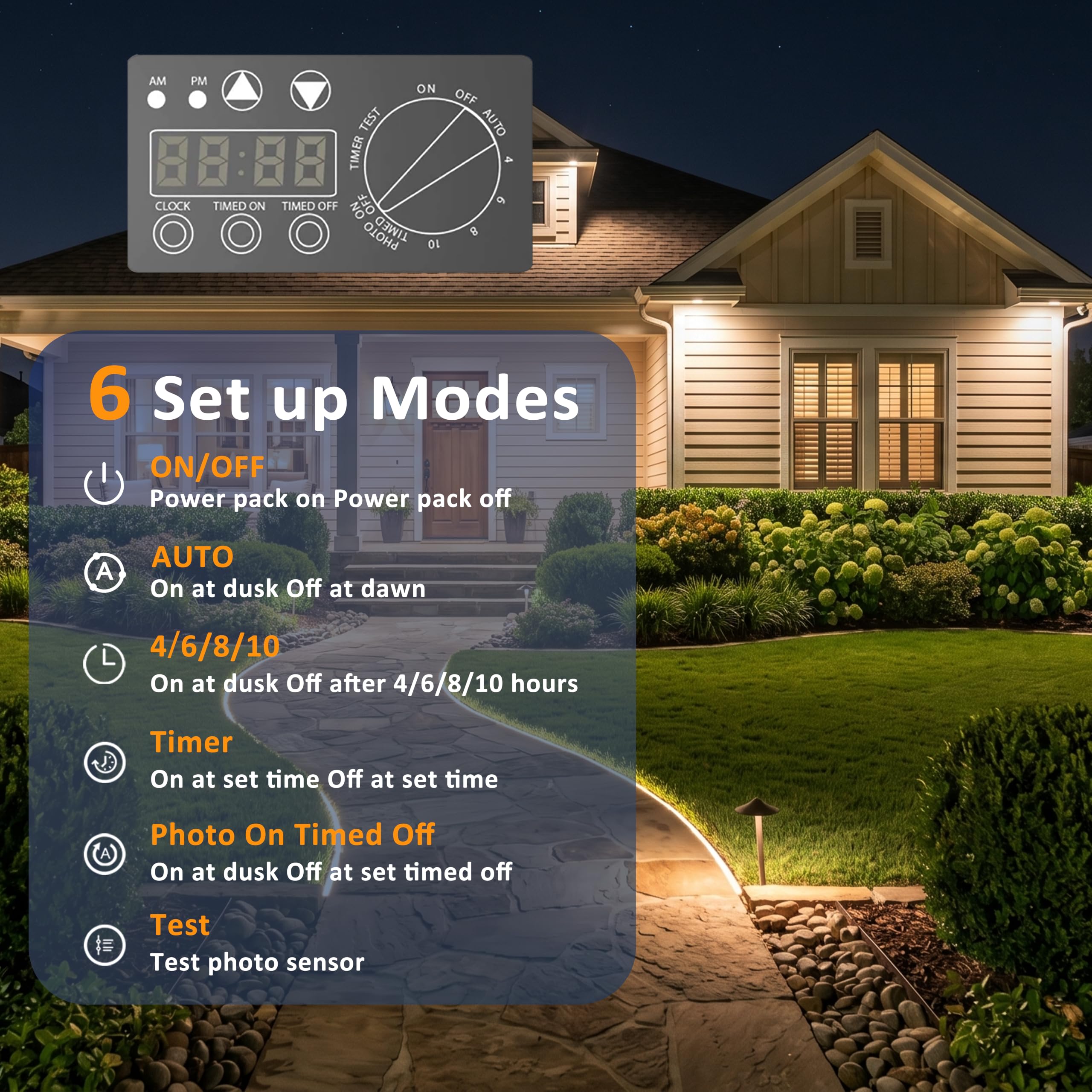

- Six Selectable Operating Modes: Choose manual ON, automatic dusk-to-dawn operation, or timed settings that turn lights on at dusk and off after 4, 6, 8, or 10 hours, making it easier to match different outdoor lighting routines
- Replaceable Phototcell with 56in Cable: The external dusk-to-dawn sensor can be positioned away from the transformer using the 56-inch cable for better light detection. Its replaceable design also
- Automatic Dusk to Dawn Control: In AUTO mode, the photocell detects surrounding light to turn compatible landscape lights on at dusk and off at dawn, reducing the need for daily manual switching
- Outdoor Weather-Resistant Housing: The durable enclosure is designed for outdoor landscape lighting installations and helps protect the transformer and controls from rain, dust, and normal seasonal weather
- For 12V AC Landscape Lighting System: Designed for compatible 12V AC path lights, spotlights, floodlights, and garden lights. Wall-mount the transformer near a grounded outlet and confirm the combined fixture load does not exceed the full 200W rating
Estimated shipping

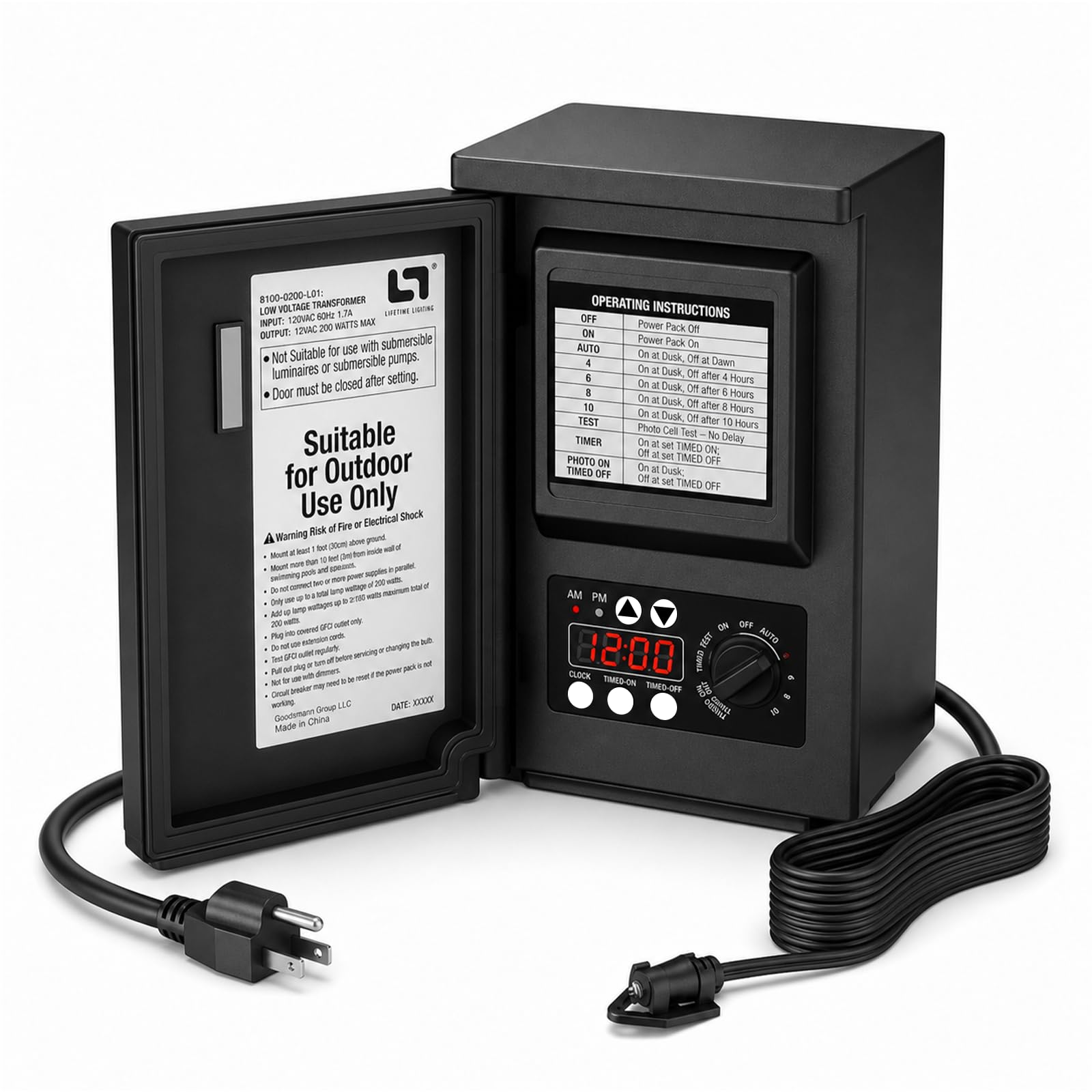

Select a product to estimate shipping.Safely converts 120V household current to 12V AC output for low voltage path lights, spotlights ects. Features 6 modes: On/Off, Auto (dusk-to-dawn), 4/6/8/10H (on at dusk and off after 4/6/8/10 hours) , Timer(on/off at set time), and Test. Durable and with weatherproofing door. Includes a user-replaceable photocell sensor – extend the unit’s lifespan without buying a new transformer.
1. Lights Not Turning On at Dusk: 1). Check photocell sensor cleanliness (wipe debris). 2). The photo cell is probably mounted in an area that has too much constant light at night, preventing the system from turning on. 3). Test the light sensor using test mode, replace photocell if unresponsive.
2. Timer Mode Not Working: Disconnect the plug of the transformer and then reinsert the plug and reset the TIMER? Please pay attention to distinguish AM/PM, and then observe whether the transformer can resume work.

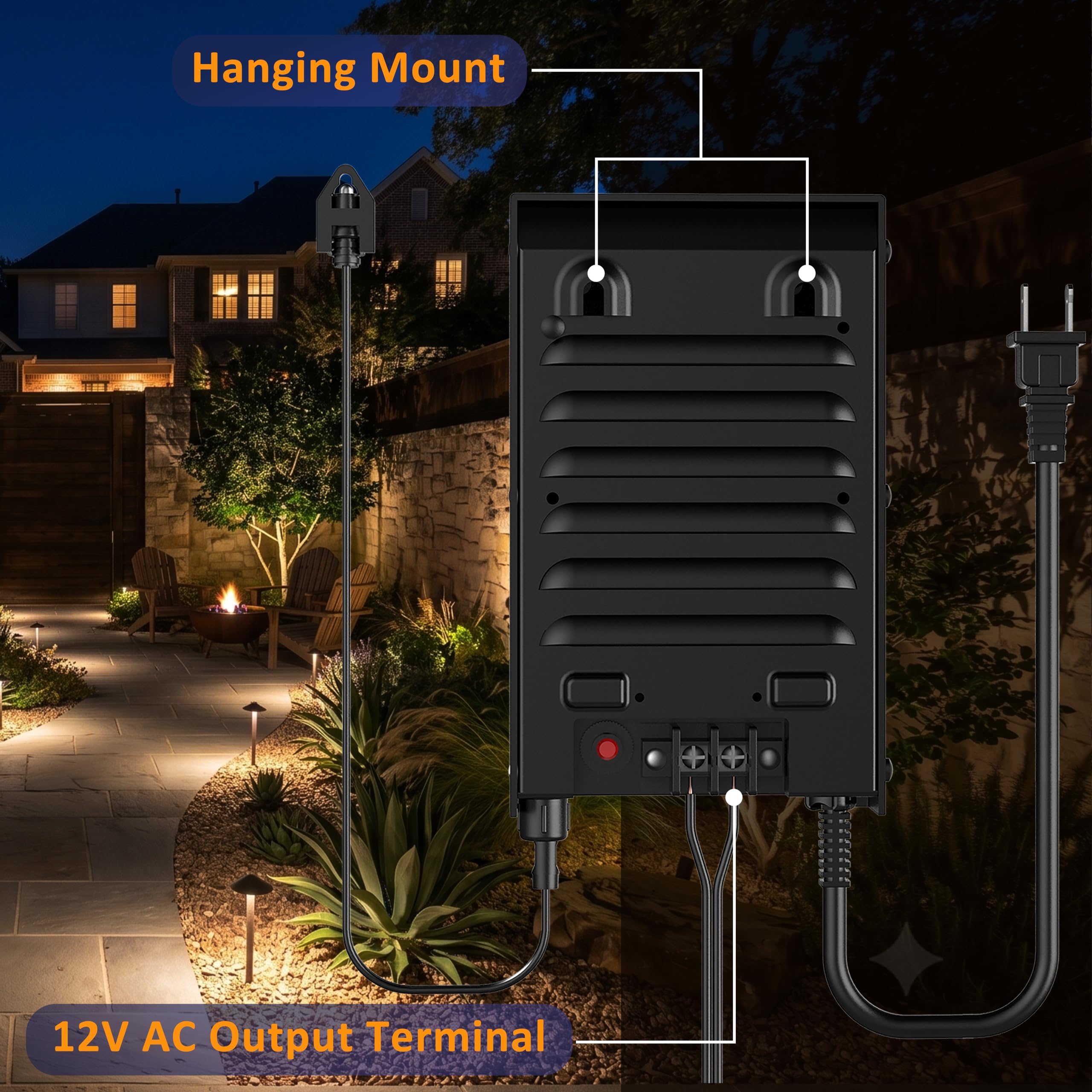

3. All of the lights fail to work: Check if there is a loose connection at the transformer screw terminal with the cable.
4. Tripped Circuit After Rain: Inspect cable connections for moisture ingress. Ensure output ports face downward. Dry unit thoroughly before restarting.
How many lights can this transformer power
In general when the electronics are getting close to their full capacity, the stability and life span can become an issue. We highly recommend that the total wattage of your lights better do not exceed 80% (200*80%=160W) of power pack’s capacity.
Can it be mounted outdoors year-round?

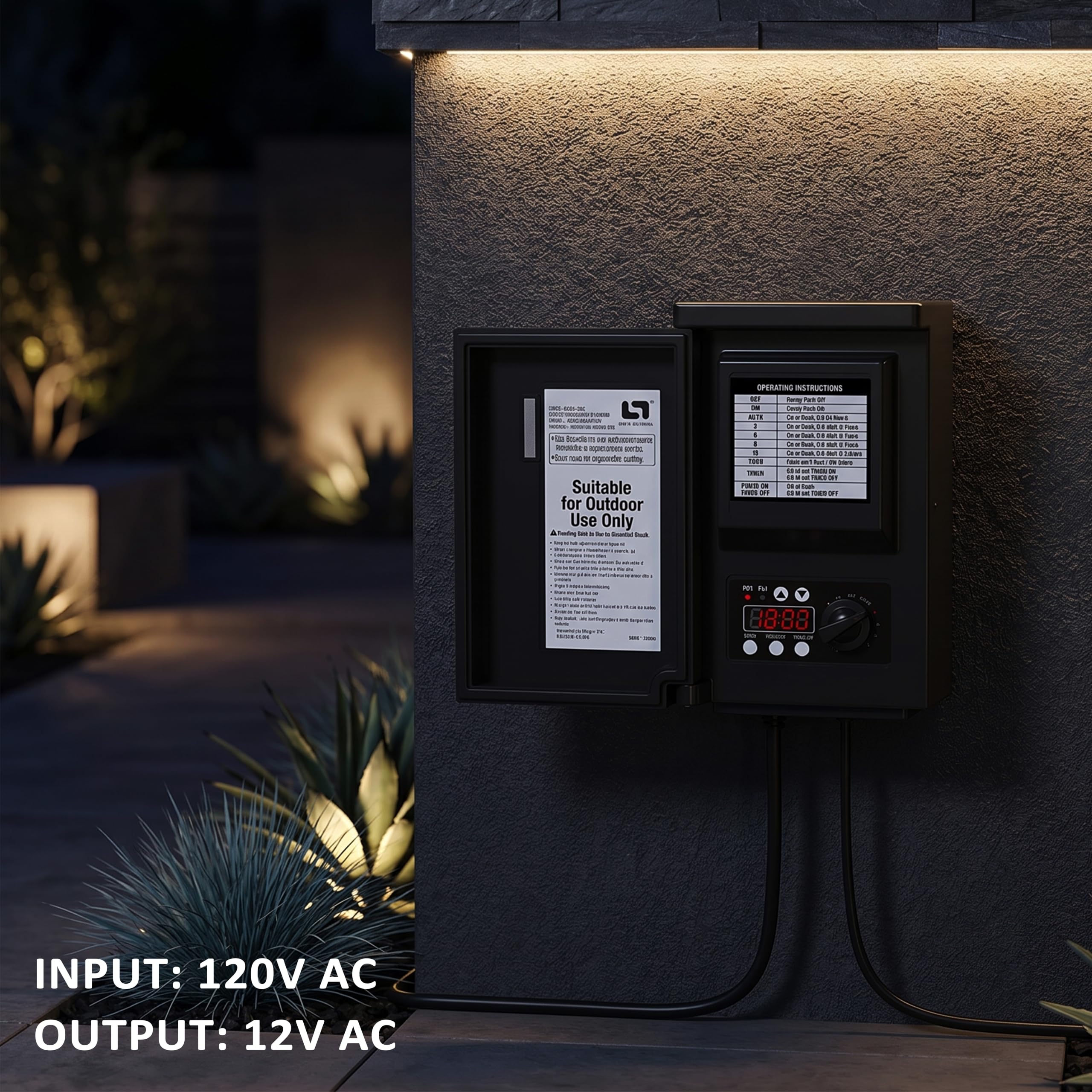

Yes! Can be hung and installed on a vertical and flat outdoor wall. Mount under eaves for added protection.
How do I replace the photocell?
Rotate the sleeve and then remove the light sensor. Insert the pin of the replacement light sensor and tighten the sleeve to complete the replacement of the light sensor.
Product details
| Main Specification | |
|---|---|
| 주요 특징 | LL LIGHTING LIVING |
| 단위 수 | 1 개 |
| 명세 Met | UL 인증 |
| 주요 특징 | LL LIGHTING LIVING |
| UPC의 | 818100025706 |
| 상품번호 | 1명 1명 |
| 관련 제품 | Photo sensor |
| 힘 근원 | Corded 전기 |
| 설치 유형 | 벽 산 |
| Technical Details | |
| 부품 번호 | 8100-0200-L01 |
| 주요 특징 | 8100-0200-L01 |
| Others | |
| 품목 하이라이트 | Full-rated 200W or 120V AC to 12V AC power pack with replaceable dusk-to-dawn photocell and 56-inch power cable. |
| 제품 유형 | Low-Voltage Transformers |
